Description

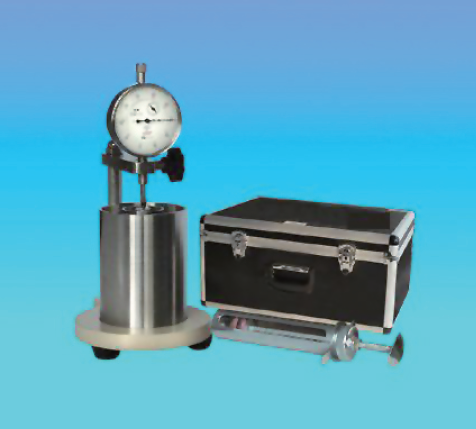

TG-150 Series Swell Meter
The swell measurement means to measure the linear swell coefficient of sample core at different time when drill core or bentonite directly contacts water or liquid additives.
The atmospheric temperature swell meter is a set of accurate device used for measuring the swell change of core or bentonite at atmospheric temperature and pressure. This instrument provides a method for measuring the swell property of core or bentonite, optimizing drilling fluid, and evaluating the stability of various additives to core or bentonite.
This instrument has an accurate point measurement device with the advantages of accurate value indication, direct reading and easy operation.
Name | Atmospheric Temperature Swell Meter | Multi-cube Atmospheric Temperature Swell Meter | High Temperature Dynamic Swell Meter | Multi-cube high Temperature Dynamic Swell Meter |
Model | TG-150-81 | TG-150-85 | TG-150-82 | TG-150-82 |
Dimensions (cm) | 16×12×26 cm | 16×50×26 cm | 26×20×38 cm | 26×80×38 cm |
Weight (kg) | 1.2 kg | 5 kg | 3 kg | 12 kg |
Power Source | – | AC220V±5% 50 Hz | ||
Power (KW) | – | 1 KW | ||
Volume of Measurement Vessel (ml) | 24 ml | |||
Measurement Range (mm) | 20 mm | |||
Measurement Error (mm) | 0.01 mm | |||
Working Temperature (℃) | Atmospheric Temperature | ～93℃ | ||
Working Pressure (MPa) | Atmospheric | Atmospheric | ||
Mixing Speed （r/min） | – | 0-3000r/min | ||
Operation Temperature (℃) | ～40℃ | |||
